How SolarAttic works
Solar Pool Heating Powered by the Heat Already in Your Attic

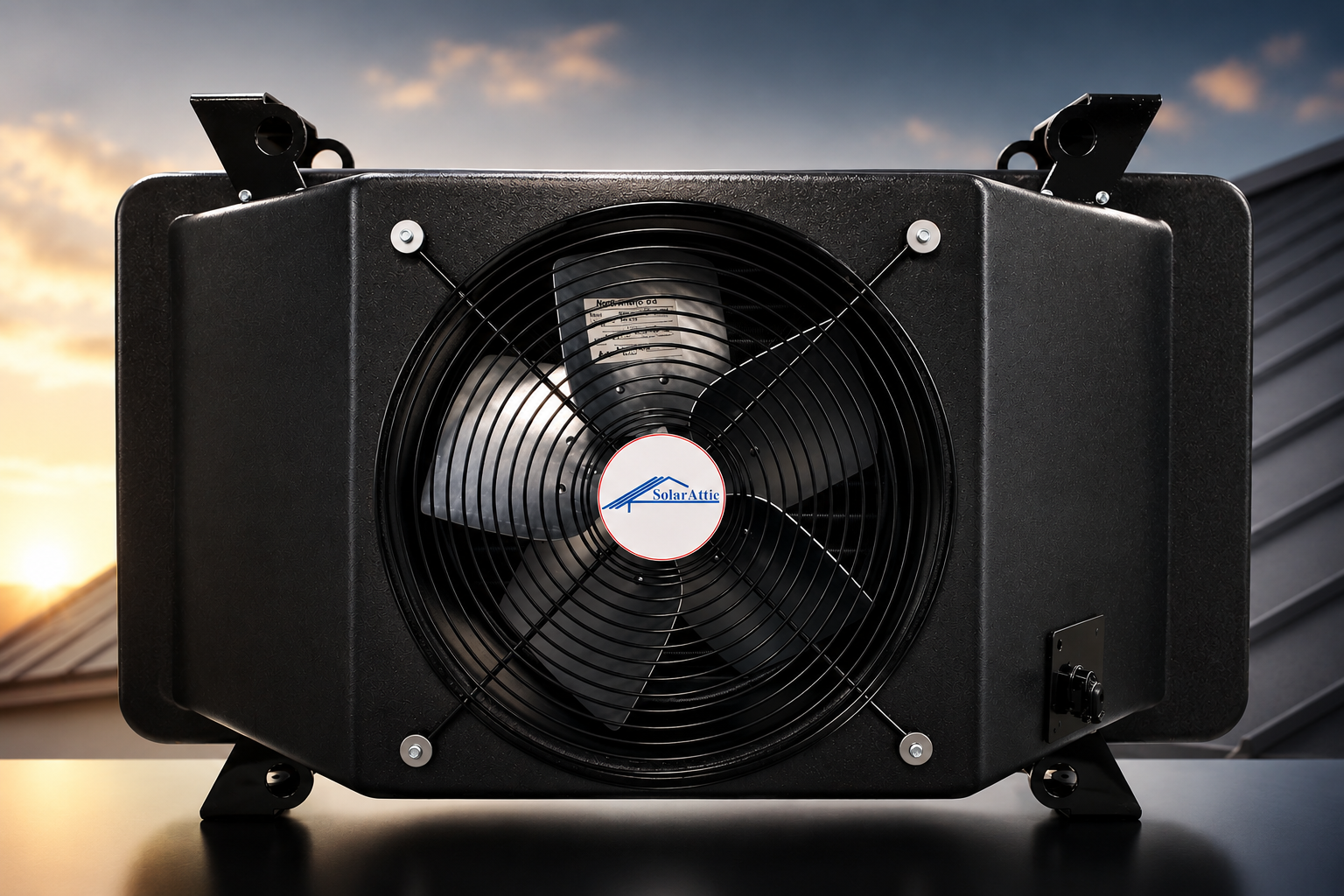

SolarAttic PCS4 turns trapped attic heat into comfortable pool water. Instead of mounting solar panels across your roof, the system uses the roof and attic space your home already has.
- Your roof collects solar heat every sunny day
- Your attic stores that heat as warm air rises and builds
- PCS4 transfers attic heat into circulating pool water
- Warm water returns to the pool for more comfortable swimming
The simple idea
Your attic becomes the solar collector.
Traditional solar pool heating usually depends on roof-mounted collector panels. SolarAttic works differently. Your roof already absorbs solar energy, and your attic naturally collects that heat. The PCS4 solar pool heater captures that trapped attic heat and transfers it into pool water.
Sun heats the roof
Solar energy strikes the roof and heat moves into the attic space.
Attic heat builds
Warm air rises and collects near the peak of the attic during sunny weather.
PCS4 captures heat
The SolarAttic unit draws heated attic air across the heat transfer coil.
Pool water warms
Pool water circulates through the PCS4, absorbs heat, and returns warmer to the pool.
Forced air convection
PCS4 transfers heat from attic air into pool water.
SolarAttic uses a process called forced air convection. Heated attic air moves through the PCS4 unit and across a heat transfer coil. Pool water circulates through that coil, absorbs the heat, and flows back to the swimming pool.
This is what makes SolarAttic different from ordinary pool heaters. The system does not create heat by burning gas. It does not need traditional roof-mounted solar panels. It uses attic heat your home is already collecting.
Attic air side
Hot attic air is pulled across the PCS4 heat transfer coil.
Pool water side
Pool water moves through the system and absorbs heat from the coil.
Return to pool
The warmed water returns to the pool through the existing circulation system.
Why it matters
Solar pool heating without the roof-panel compromise.
SolarAttic gives homeowners the benefits of solar pool heating while avoiding the biggest objections many people have about traditional solar pool panels.
Cleaner roofline
No large traditional solar pool panel array covering the roof.
Lower energy burden
Uses renewable attic heat instead of relying only on gas or propane.
Attic heat recovery
Turns heat trapped inside the attic into useful swimming pool comfort.
Engineered system
Designed specifically for attic-based solar pool heating performance.
Manual or automatic control
SolarAttic can run simply or automatically.
PCS4 can be configured for manual, semi-automatic, or automatic operation depending on the package, controls, and pool equipment setup.
With an automatic solar controller, the system can compare attic temperature and pool water temperature. When solar heat is available and the pool needs heat, the controller can route water to the PCS4 and turn the system on.
Manual operation
A simpler setup for homeowners who prefer direct control or timed operation.
Semi-automatic operation
Can work with planned pump timer windows and temperature-based control strategies.
Automatic operation
Uses solar control logic to help maximize useful heat collection when conditions are right.

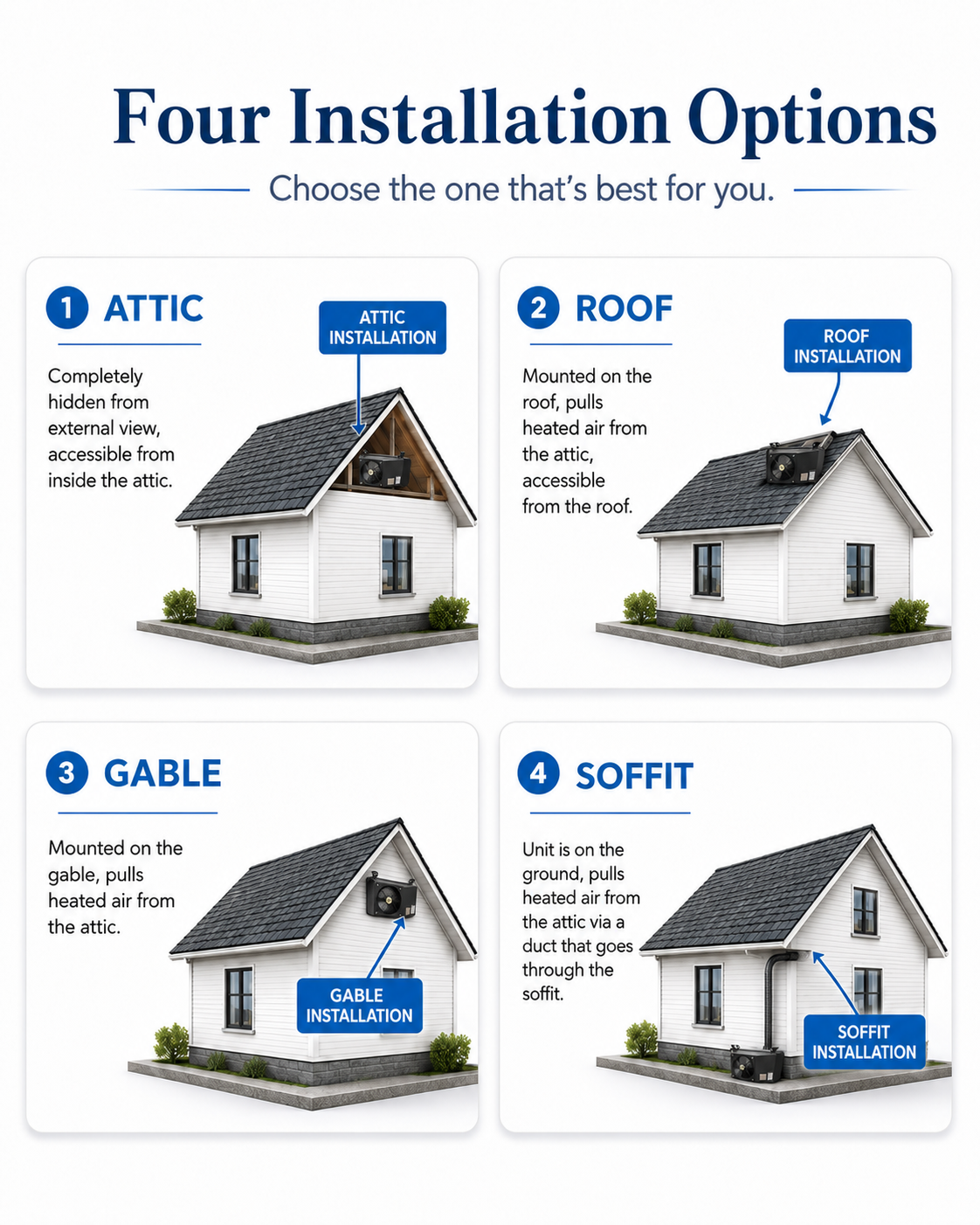

Installation paths
SolarAttic adapts to many home and pool layouts.
The best installation style depends on your attic access, roofline, pool equipment location, climate, and contractor recommendation.
Attic installation
Completely hidden from exterior view and accessible from inside the attic.
Roof installation
Mounted on the roof and designed to pull heated air from the attic.
Gable installation
Mounted on the gable and positioned to draw attic heat through the system.
Soffit installation
Ground-based unit that pulls heated attic air through ducting routed through the soffit.
Performance factors
What affects how much heat your pool receives?
SolarAttic performance depends on the same real-world factors that affect all solar pool heating systems: sunlight, pool size, water flow, climate, pool cover use, installation quality, and how hot the attic becomes.
Attic temperature
Homes with strong attic heat buildup during sunny weather are usually better candidates.
Pool size
Larger pools require more heat. PCS4 is designed for pools up to 1,000 sq. ft. or 35,000 gallons.
Water flow
Proper flow through the system helps the heat transfer process work efficiently.
Pool cover use
A pool cover can help reduce overnight heat loss and improve overall comfort.
The better way to think about solar pool heat
SolarAttic uses your home as part of the system.
| Feature | SolarAttic PCS4 | Traditional Solar Pool Panels |
|---|---|---|
| Solar collection area | Uses heat already collected in the attic | Uses roof-mounted collector panels |
| Exterior appearance | No large panel array required | Visible roof panels |
| Heat transfer method | Forced air convection and pool water circulation | Pool water circulates through roof collectors |
| Additional home benefit | Helps reduce attic heat buildup | Primarily heats pool water |
| Best fit | Homeowners who want solar pool heating without roof panels | Homeowners comfortable with visible rooftop collectors |
How it works FAQ
Common questions about attic solar pool heating.
Is SolarAttic really solar pool heating?
Yes. SolarAttic uses solar heat collected by your roof and stored in your attic, then transfers that heat into your pool water.
Does it need roof-mounted solar panels?
No. SolarAttic is designed as a panel-free solar pool heating system.
Does it heat the pool and cool the attic?
Yes. As heat is transferred into the pool water, attic heat buildup is reduced.
Does SolarAttic work at night?
SolarAttic depends on available attic heat. It performs best during sunny conditions when the attic is warmer than the pool.
What attic conditions are best?
Homes with strong attic heat during sunny weather are best. Radiant barrier roof systems may reduce attic heat collection.
Will it work with my pool pump?
In many installations, PCS4 can work with existing pool circulation equipment, but proper flow, plumbing, and controls are important.
Can it replace a gas heater?
SolarAttic can reduce reliance on gas or electric pool heating. The right setup depends on your pool, climate, and heating goals.
Who should install it?
Some capable DIY homeowners install SolarAttic, while others use a pool contractor, HVAC professional, installer, handyman, or dealer.
Ready to use your attic heat?
Heat your pool with solar energy your home already collects.
SolarAttic PCS4 gives you a smarter, cleaner, panel-free way to enjoy warmer pool water and longer swim seasons.
